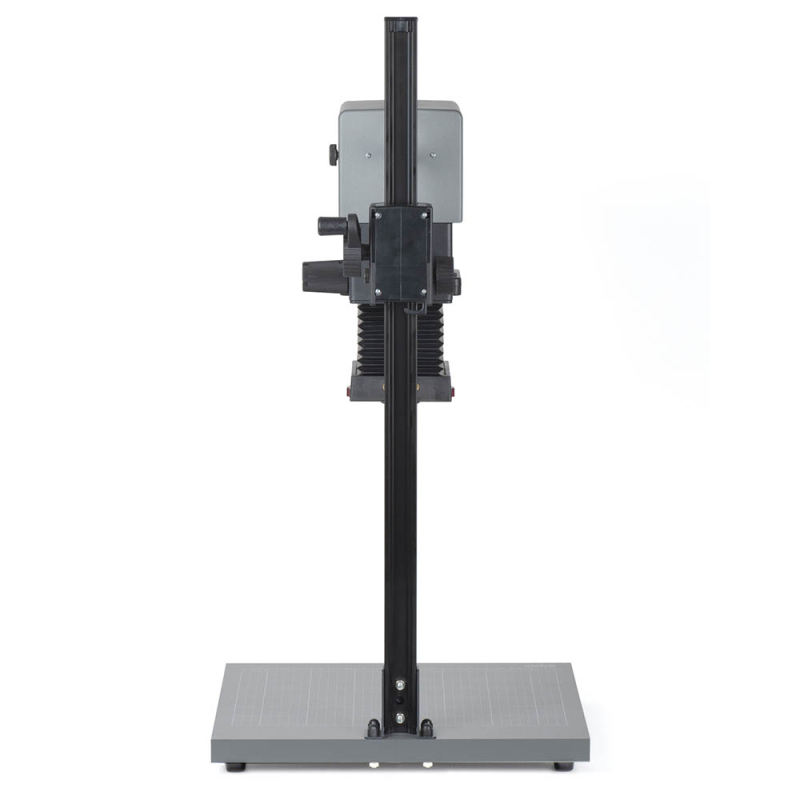

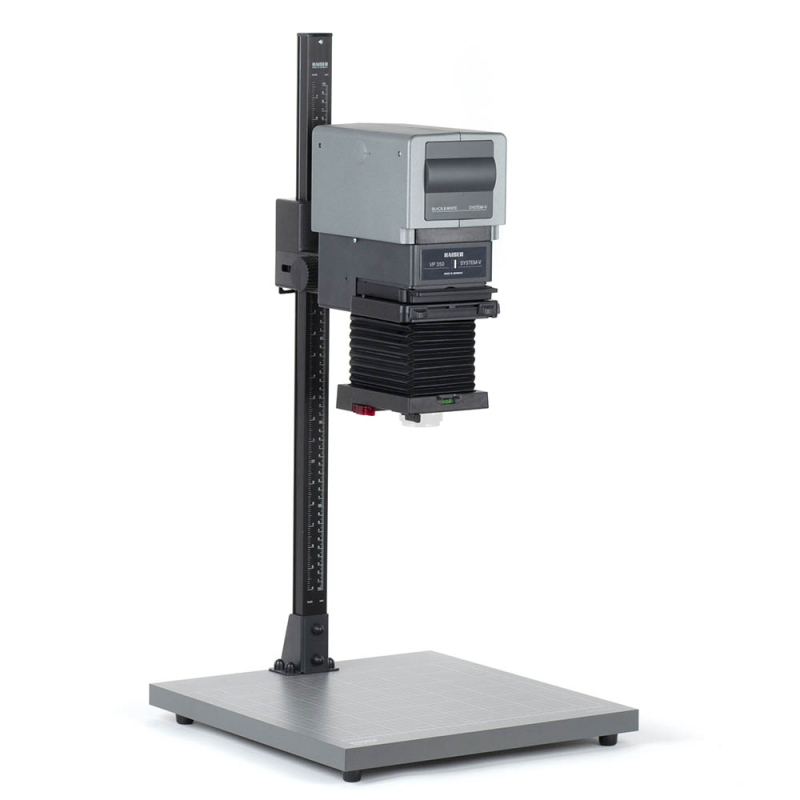

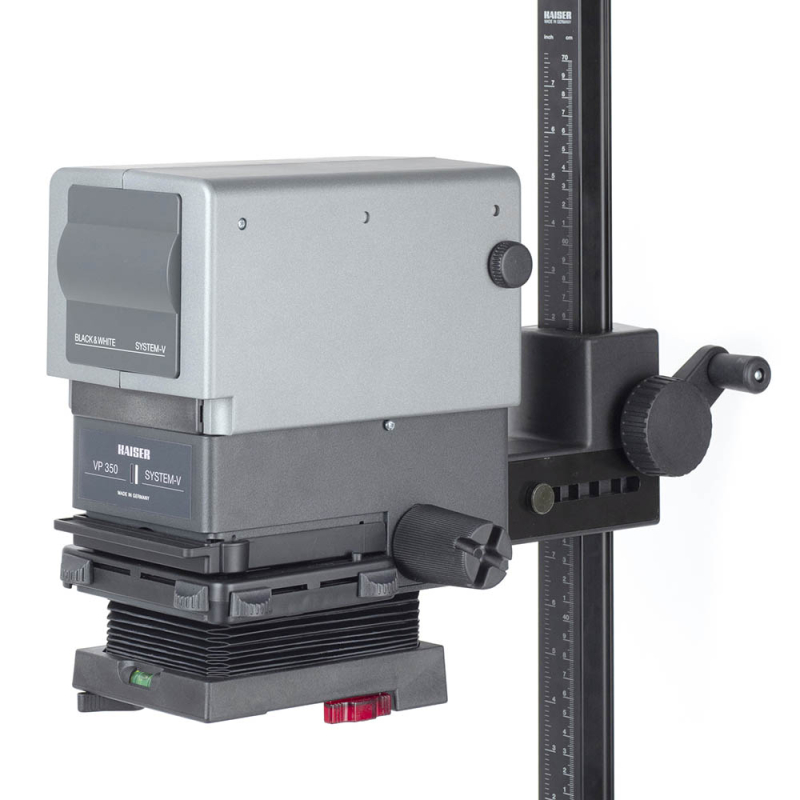

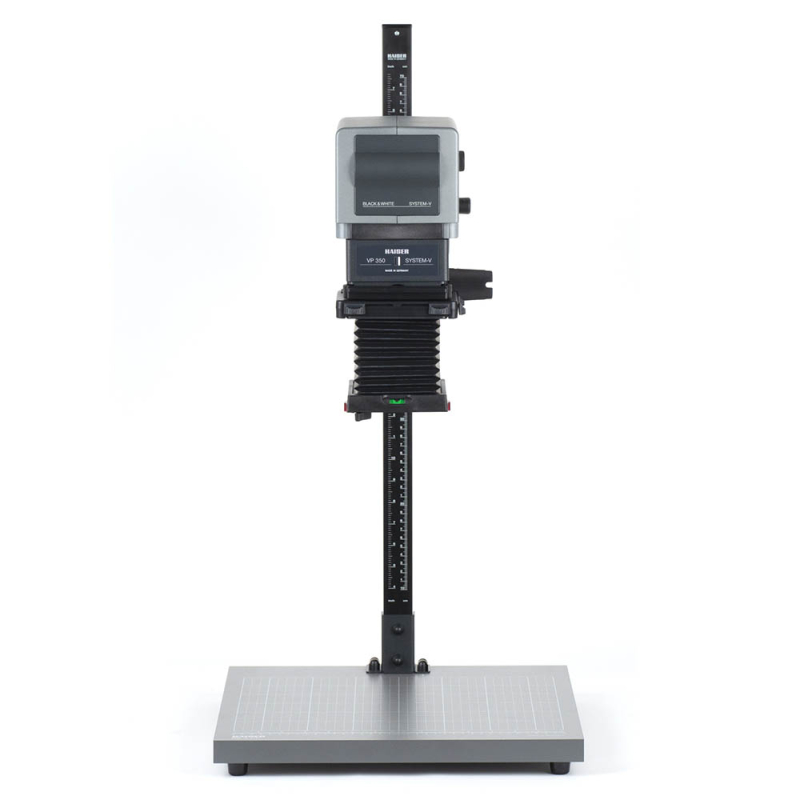

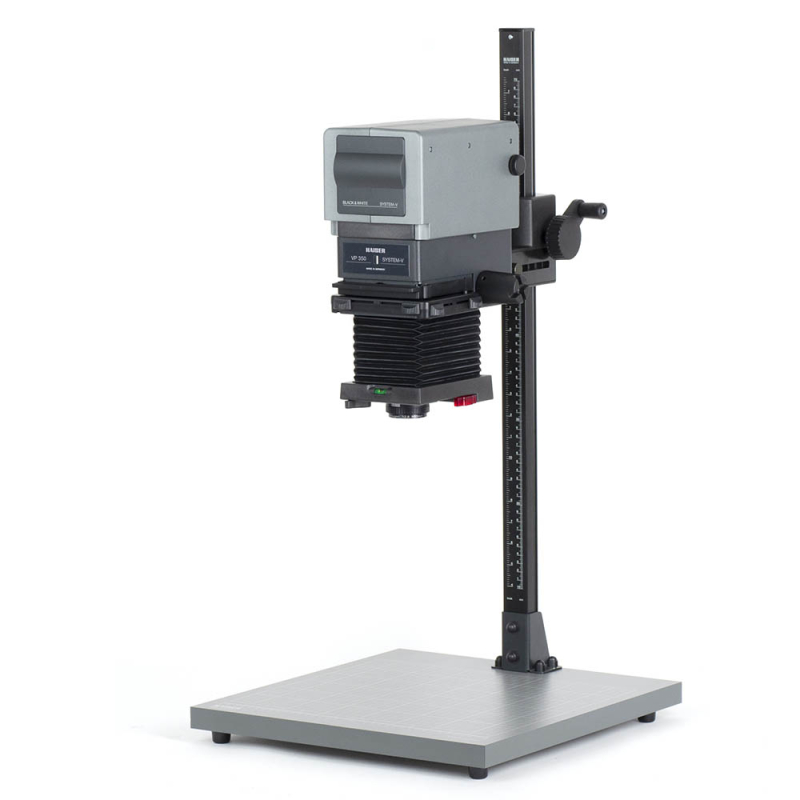

Kaiser VP 350 SYSTEM-V B & W Enlarger

Lighting head with 75 watt opal lamp, lamp adjustable. Available as an optional accessory: Filter drawer (4448) for inserting 8.5 x 8.5 cm filters (e.g. Multigrade^® filters); with diffusion screen for homogeneous light distribution.

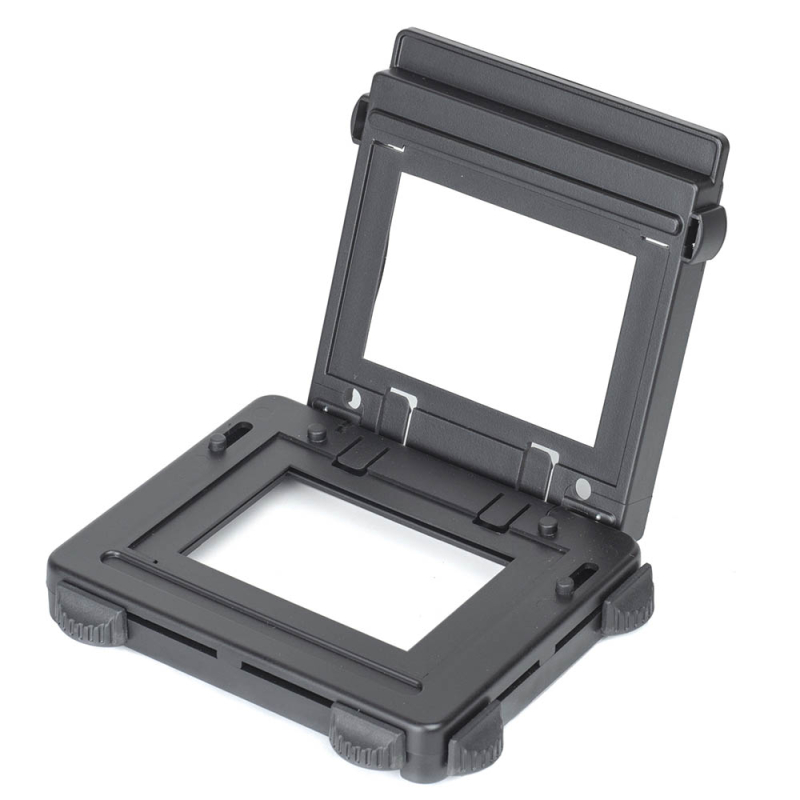

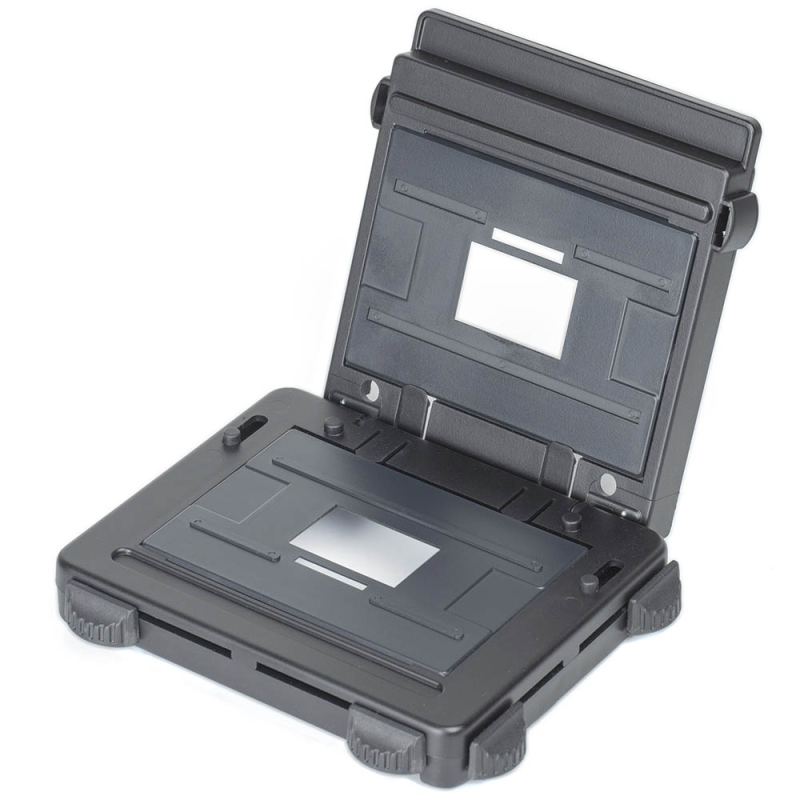

Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and registering pins. Incl. format masks 24 x 36 mm (35 mm). More format masks and glass inserts are available as optional accessories.

Optically ground single condenser for formats up to 24 x 36 mm, interchangeable with double condenser for formats up to 6 x 6 cm (4542) or double condenser for formats up to 6 x 9 cm (4449).

Lens panel with spirit level and slidable red filter. Quick change attachment for easy lens mounting with lens holder ring.

Height adjustment by hand-crank operated friction drive on plastic bearings.

Horizontally adjustable to change the distance between the column and the optical axis. This is required, for example, if the usable depth on the baseboard is reduced by the width of the rear frame when using a masking frame.

Floor projection. For this purpose, the column can be mounted in the column base turned by 180°.

Vibration-resistant column of dull black anodized aluminum tubing, with cm and inch scales.

Non-reflecting, matt gray laminated baseboard with printed fine grid and cm and inch scale and metal base for the column.

Can be converted into a copy stand in just a few simple steps. To do this, the enlarger head is replaced with the RA 2 XA copy adapter (5421). If required, a lighting unit from the R2 Copy System can be attached to the baseboard.

Specifications:

Column (HxWxD): approx. 760 x 35 x 25 mm (29.9 x 1.4 x 1 in.)
Baseboard (WxHxD): approx. 400 x 25 x 420 mm (15.7 x 1 x 16.5 in.)
Lamp: opal lamp 75 W, E27
Maximum enlargement on baseboard: 24 x 30 cm (9.4 x 11.8 in.)
Cord: approx. 2.50 m (8.2 ft.)

Scope of supply:
Enlarger with compound negative carrier
Equipped with format masks 24 x 36 mm (4486)
Opal lamp (4356)
Two lens holder rings. Without lens.
