Kaiser RB 100D LED Lighting Unit

Model 5648

Daylight LED lamps for digitization

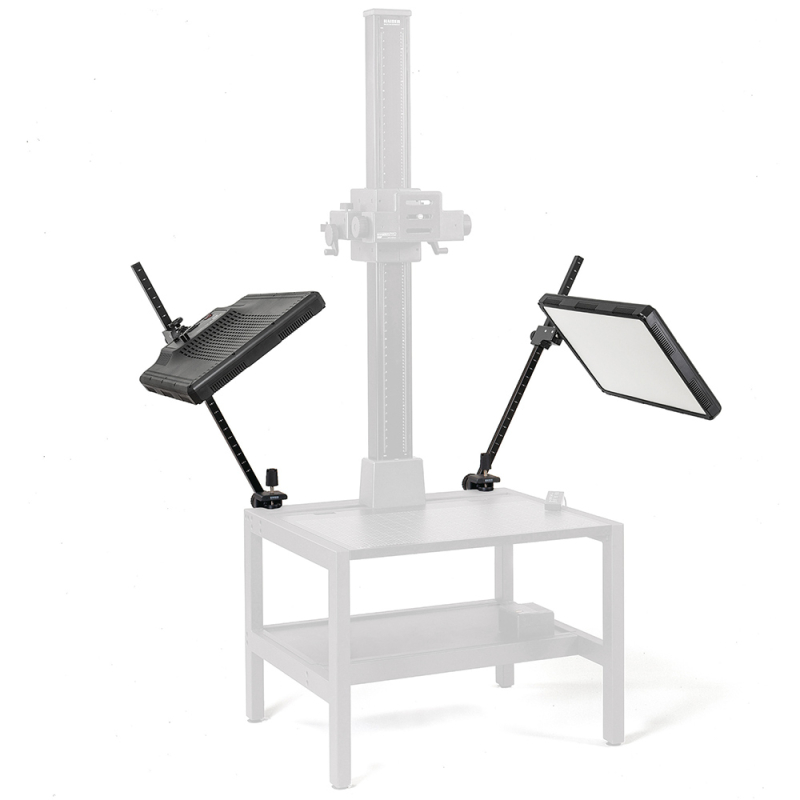

High-quality daylight-type LED lighting unit with two 100-watt lamps. Creates soft and even lighting that is suitable for e.g. for reproduction / digitization. The output of both lamps can be adjusted separately steplessly from 10 to 100%. Compatible with Kaiser's rePRO series copy stands and RSDmot 1.8 (5600) copy stand.

More details

Delivery time 4-6 weeks

2 040,00 €

Quantity

Ask about product

Data sheet

Category	Copy and Repro Stands
Merkki	Kaiser
Model	RB 100D LED Lighting Unit
Tuotekoodi	5648

More info

Excellent lighting quality due to 504 selected LEDs in each light. 5600 Kelvin color temperature (daylight / neutral color rendering), high color rendition index (CRI) of ≥ 95. Flicker-free light, free of infrared and UV content.

Specially textured diffuser screens (51 x 36 cm / 20.1 x 14.2 in.) scatter and direct the emitted light and thus provide for a soft illumination and high illuminance.

Brightness can be continuously dimmed between 10 and 100 %. Lights can be controlled individually.

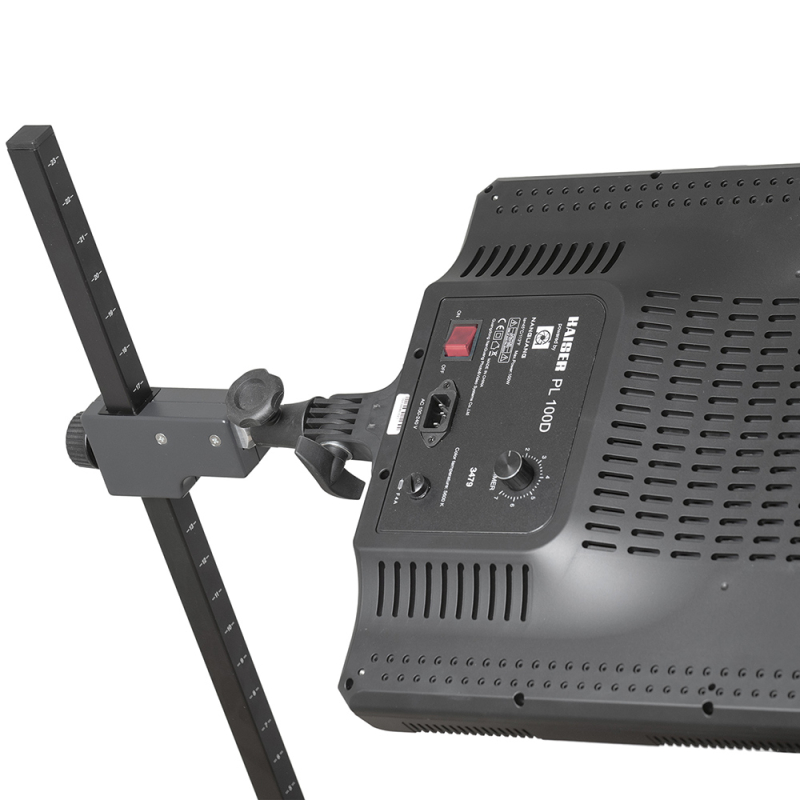

Light housings made of high quality plastic, tiltable and adjustable in height along the vertical arms.

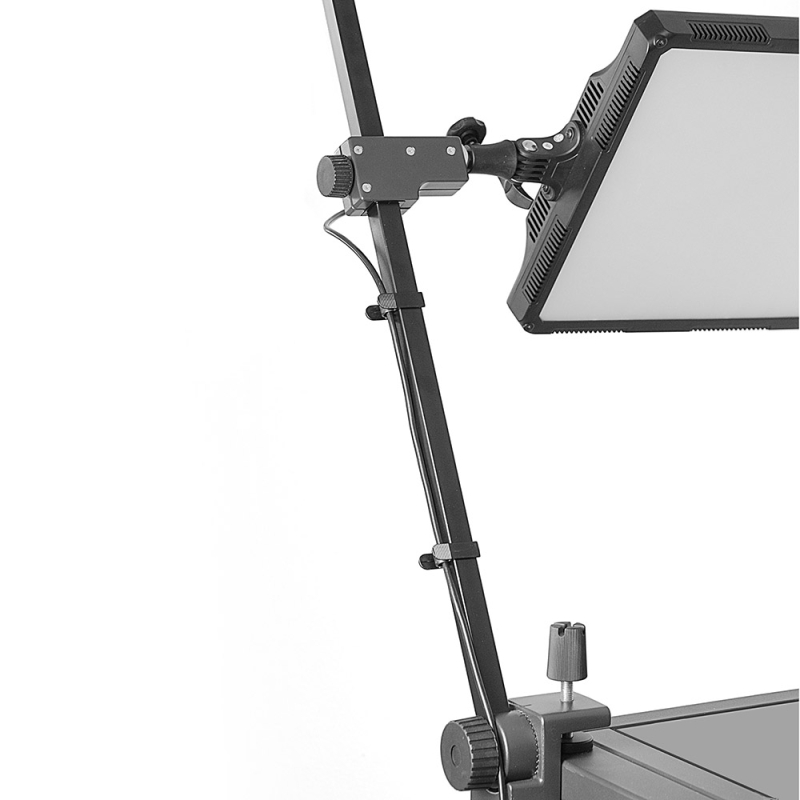

Vertical arms with height markings, tiltable in detent joints. For re-producible settings.

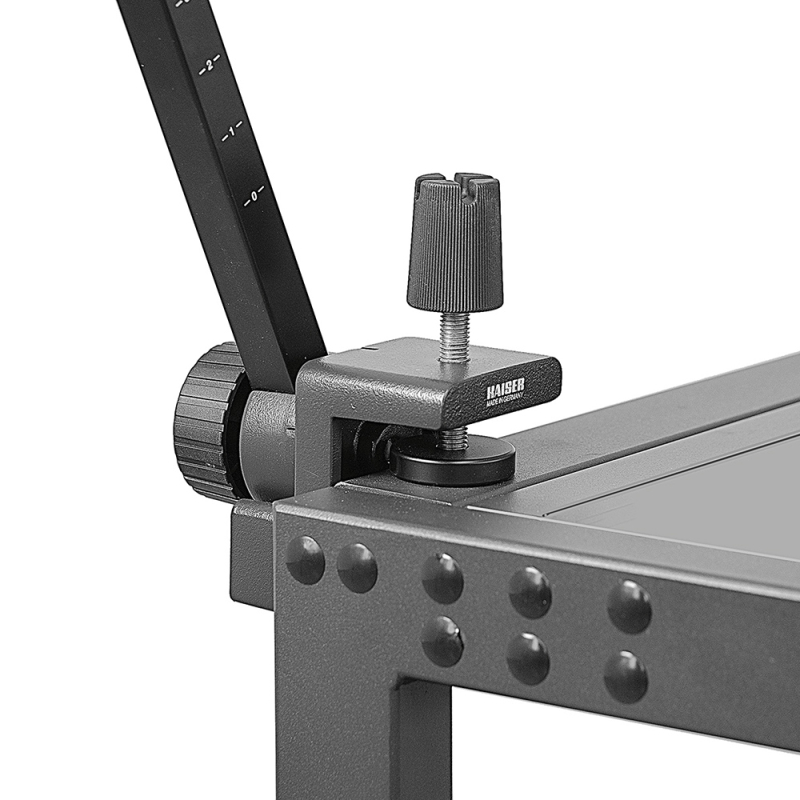

Strong die-cast clamp bases for mounting. Clamp width up to 55 mm (2.2 in.).

Cable holders for attaching the mains leads along the vertical arms.

Lights can also be used as studio lights on suitable stands and fixtures with 16 mm (5/8") standard spigot.

Lights
LED arrays: 2 x 504 High CRI LEDs
Color temperature: 5600 Kelvin
Color rendition index: CRI ≥ 95
Angle of radiation: 85°
Light emitting area of one light: 51 x 36 cm (20.1 x 14.2 in.)
Power consumption: 2 x 100 W
Operating voltage: 100 - 240 V

Vertical arms
Length: 87 cm (34.3 in.)
Cross section: 25 x 25 mm (1.0 x 1.0 in.)
Max. illumination*: 8200 lux
*based on uniform illumination of a 16.5 x 11.5 in. flat subject

Scope of delivery: 2 x soft light, 2 x vertical arm with die-cast clamp base and angle guide for the light, 2 x mains lead, 4 x cable holder.
