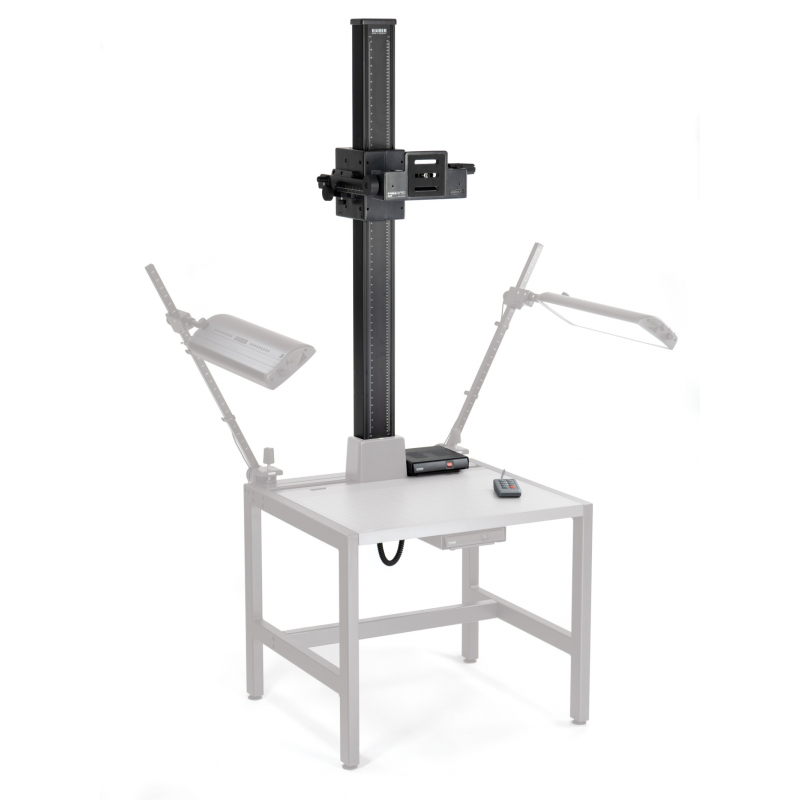

Kaiser RSP autoDrive 1.5 Column

Column made of multi-chamber special aluminum section, matt black anodized, with printed cm and inch scales. Attaches to rePRO Table Frame (5615), with rePRO Wall Mount (5614) or in Base (5610), for example mounted on the rePRO Table Frame 75H (5618).

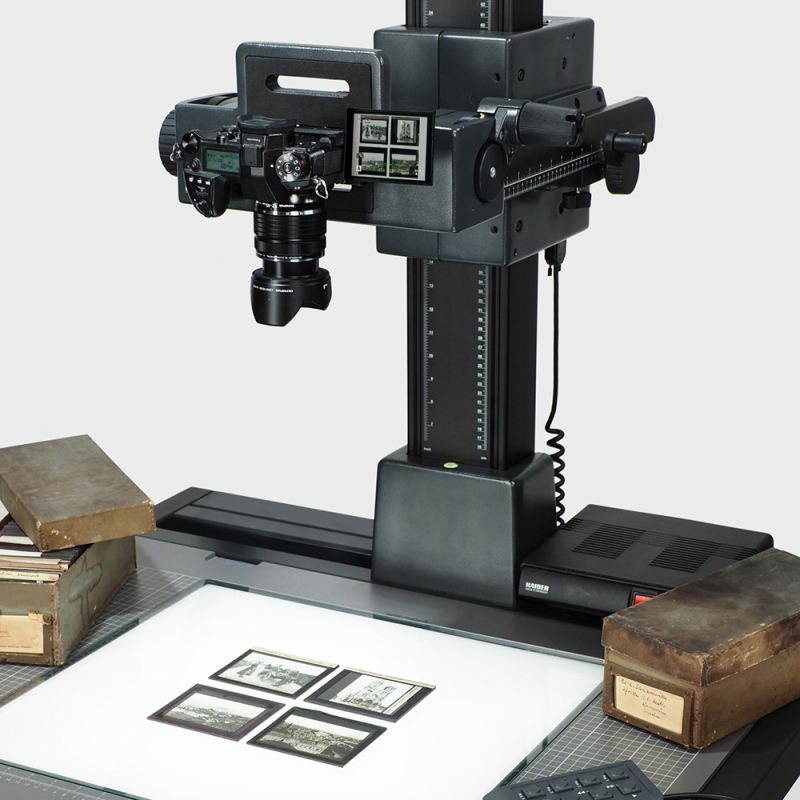

Camera carrier made of aluminum die-cast, with motorized height adjustment via "Kaiser autoDrive" control program or cable remote control. Adjustment speed independent of load. Any height position is exactly held via self-limiting worm-gear. Automatic limit stop by magnetic sensor. Camera carrier horizontally adjustable via specially shaped parallel guides with gear rack, hand cranks for right-hand/left-hand operation, two locking screws. Built-in spirit level. Camera mounting plate can be swiveled by ± 90° with high-precision fine adjustment.

Cable remote control for slow and fast travel speed up and down. Four height positions can be stored and recalled accurately with one keystroke. Red emergency stop key.

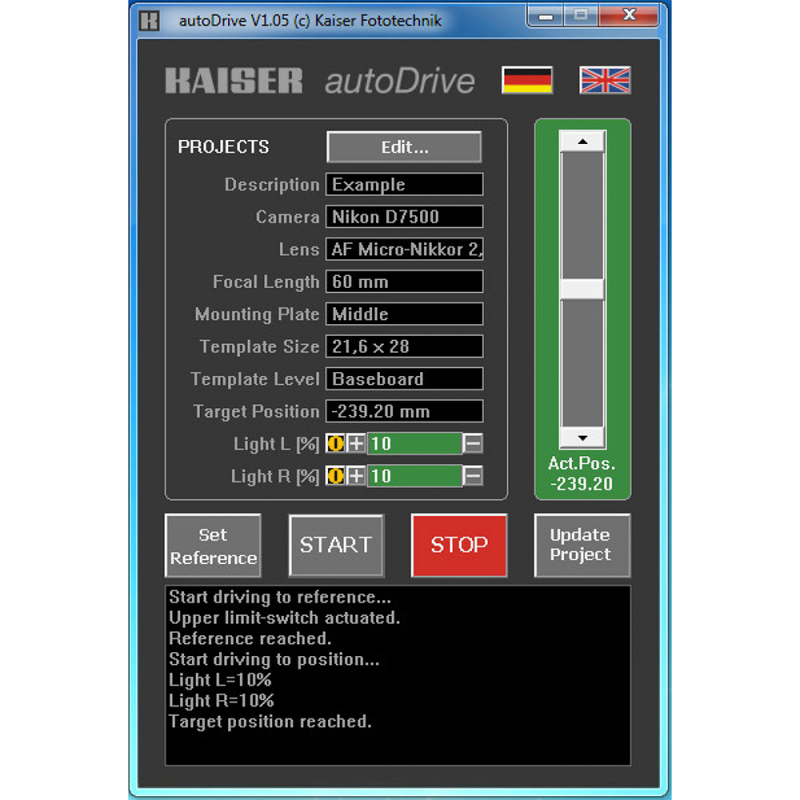

“Kaiser autoDrive" control program for computer-controlled height adjustment via PC/laptop and for brightness control of the RB 570 AX LED lighting unit (5652). Height positions can either accessed directly or by retrieving one of 500 possible saved “projects” including height position and brightness values.

Specifications

Column height: 1.5 m
Cross-section: 12 x 8 cm
Height adjustment: motorized/computerized
Maximum load: approx. 15 kg
Mounting thread: 1/4” / 3/8” exchangeable

Ask for a quotation: myynti@jastekniikka.fi
