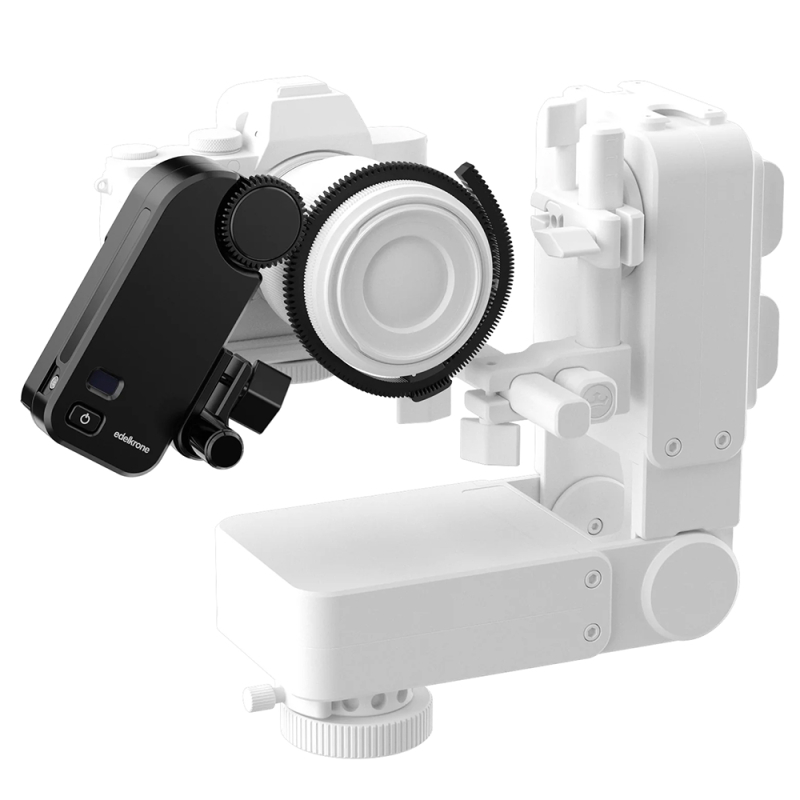

Edelkrone Focus/Zoom Module for HeadPLUS

SPECIFICATION

Box Content

Focus/Zoom Module, 15mm rod, 15 mm rod clamp, 19 mm rod clamp, lens calibration chart & stand, 1 x lens gear, AC/DC Adapter

Size

(L x W x H) 4.72 x 2.16 x 1.22 in (120 x 55 x 31 mm) actual size (rod clamp & battery are not included)

Weight

0.57 lb (261 gr.) actual weight (rod clamps, rods and battery are not included)

Gear pitch

Standard 0.8 mm pitch gear (all professional cinema lenses)

Lens compatibility

All lenses with the included edelkrone lens gear ring. Not compatible with servo lenses (focus by wire).

Number of axes

Single (Focus or Zoom)

Motor type

Brushless motor with ultra high-res encoder.

Power input

LP-E6 type battery (NOT included), AC/DC adapter (included)

Compatibility

HeadPLUS also works as a stand alone device (connects directly to edelkrone App)

Materials

CNC machined aluminum and stainless steel components.

Compatible Lenses

Hard-stop lenses: Mechanical focusing with a hard stop on the ends of focus limits. Focus wheel rotates for approximately 30 seconds, or until it reaches a hard stop.
Infinity lenses: Mechanical focusing with no hard stops on the ends of focus limits. Focus wheel rotates infinitely without adjusting the lens elements.

* Lens Controller only works with hard-stop lenses and infinity lenses. Doesn’t work with Servo / Focus by wire lenses.
