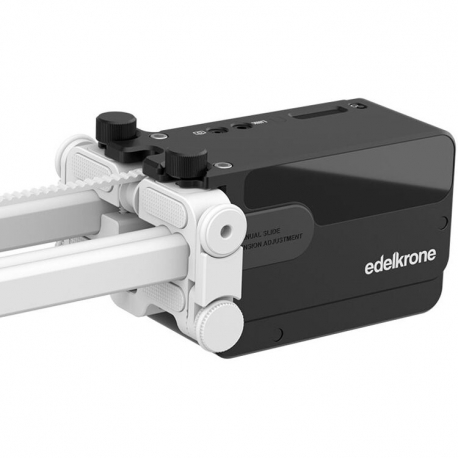

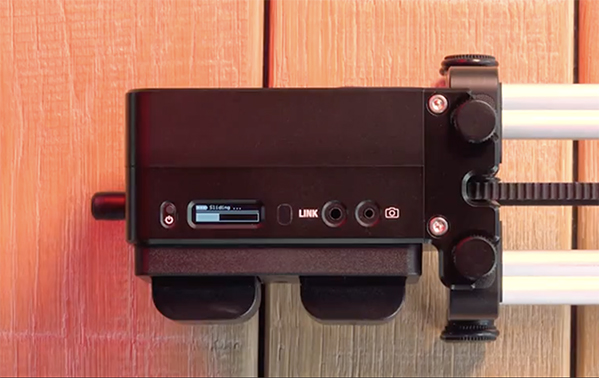

Edelkrone Motor Module v3 (SliderPLUS)

SPECIFICATION

Box Contents

Motor Module, connection screws for Motor Module, Sony NP-F Battery Bracket, AC/DC Adapter, allen key.

Size (L x W x H)

5.3 x 3.18 x 2.59 in (135 x 81 x 66 mm)

Weight

1.87 lb (0.85 kg)

Incline Capacity

Up to 22.5° with 5.5 lb (2.5 kg)

(you can achieve steeper inclines with the help of Vertical Module for SliderPLUS)

Min. step size on tripod

22.4 μm

Min. step size on ground

11.2 μm

Max. speed on tripod

2.52 in/sec (6.42 cm/sec)

Max. speed on ground

1.26 in/sec (3.21 cm/sec)

Number of axes

Single (the slide motion)

Motor type

Step motor with ultra high-res encoder.

Power input

2 x NP-F type battery (Batteries NOT included) (Sony NP-F Battery brackets included)

Alternatively, 2 x LP-E6 Batteries can be used (if LP-E6 battery brackets are purchased separately)

Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)

Operates 2 hours (continuously at full speed)

Shoots 12000 photographs (in Time-Lapse mode)

Shutter trigger cable socket

2.5 mm (Shutter trigger cable is sold separately).

Compatibility

To all SliderPLUS Models manufactured after 2018.

Can be paired with

HeadONE (Both in single or dual modes), Pan Module, HeadPLUS

Can be controlled

edelkrone App, Controller for edelkrone Moco

Mobile device connection

2.4GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminum and stainless steel components.

DC plug specs

Voltage input: 100-240V, Voltage out: 9.0V, Current output: 2.2A, Polarization: positive center, Output connector: Barrel plug, 2.1 mm I.D. x 5.5 mm O.D x 9.5 mm
