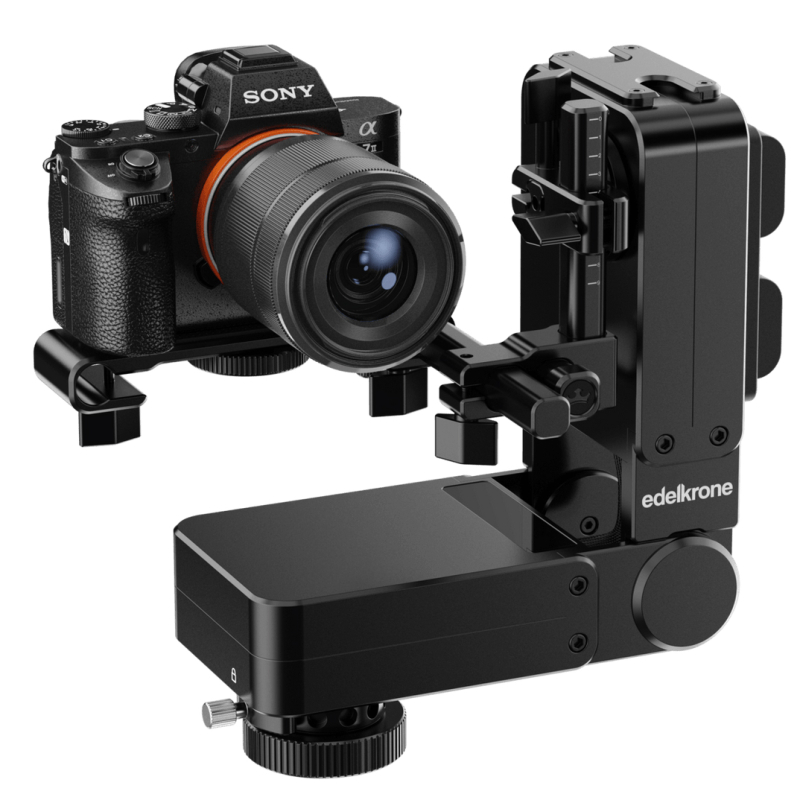

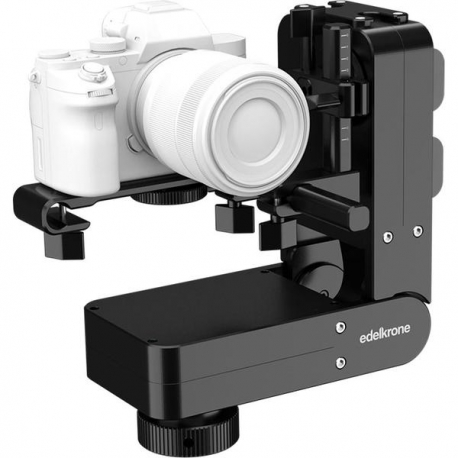

Edelkrone HeadPLUS v2 Motorized Pan & Tilt Camera Head

SPECIFICATION

Box Contents

HeadPLUS, L Bracket for cameras up to 10 lb (4.5 kg), AC/DC Adapter, Sony NP-F Battery Brackets, Width extenders for SliderPLUS legs, allen keys

Size

HeadPLUS: (L x W x H) 14.3 x 3.93 x 2.79 in (364 x 100 x 71 mm) L Bracket (folded): (L x W x H) 6.7 x 5.6 x 2.9 in (168.5 x 140 x 75 mm)

Weight

HeadPLUS: 6.17 lb (2.8 kg) (including the L-Bracket and recommended batteries) L Bracket: 0.93 lb (423 gr)

Recommended Camera Load

10 lb (4.5kg)

Mounting options

3/8”-16 mounting port on bottom. 1/4”-20 mounting screw on L bracket.

Min. step size

0.022 degree

Max. speed

360° in 20 sec

Number of axes

2 (Pan & Tilt)

Motor type

2 x ultra precise step motors with ultra high-res encoders.

Battery life

With 28.8 Wh energy (1 Canon LP-E6 battery is 14.4 Wh)
Operates 5 hours (continuously at full speed)
Shoots 36000 photographs (in Time-Lapse mode)
1 Sony NP-F970 battery is 47.4 Wh

Power input

V-Mount, Gold Mount, Canon LP-E6, Sony NP-F.

(Sony NP-F Battery Bracket Included)

Batteries NOT included

Shutter trigger cable socket

2.5 mm (shutter trigger cable sold seperately)

Compatibility

SliderONE v2, Motor Module (Previously known as Slide Module v3 and Slide Module v2), SliderPLUS v5, SliderPLUS v5 PRO, DollyONE, DollyPLUS, Focus/Zoom Module, Target Module, SliderPLUS.

Mobile device connection

2.4 GHz direct link for inter-device communication and BLE for pairing / mobile phone connection

App. compatibility

iOS 11.0 or later & Android 5.0 or later

Materials

CNC machined aluminum and stainless steel components.
